High Speed HDPE Single Wall Corrugated Pipe Production Line For Cable Protection

1. High-Quality Single Screw Extruder: The Heart of the Machine

1)Strong Screw and Barrel: Made from special hardened alloy steel. Very durable and resistant to wear, perfect for HDPE material. Ensures long life and stable production.

2)Excellent Melting: The 30:1 L/D ratio melts the plastic completely and evenly. This gives you a smooth pipe with consistent wall thickness.

3)Precise Temperature Control: Each heating zone has accurate temperature control with air cooling. This keeps the temperature perfect for HDPE, ensuring high-quality output.

2. Precision Mold: For Perfect Pipe Shape

1)Dual-Layer Crosshead: This special mold makes the smooth inside wall and the corrugated outside wall at the same time. The design ensures the plastic flows evenly for a perfect pipe.

2)Easy to Change: The mold is designed for easy size changeover. You can quickly switch from making one pipe size to another.

3)Smooth Surface: The inside of the mold is polished to a mirror finish. This makes the inside of your pipe very smooth, making it easy to pull cables through.

3. Corrugator and Cooling Unit: For Strong Pipe Structure

1)Durable Mold Blocks: The corrugator uses strong iron mold blocks. They are precisely machined to form the perfect corrugated (ring) shape on the pipe.

2)Fast Vacuum Cooling: A vacuum system sucks the hot plastic onto the mold blocks to form the shape. The water spray system then cools it down quickly, making the pipe strong and rigid.

Technical parameters:

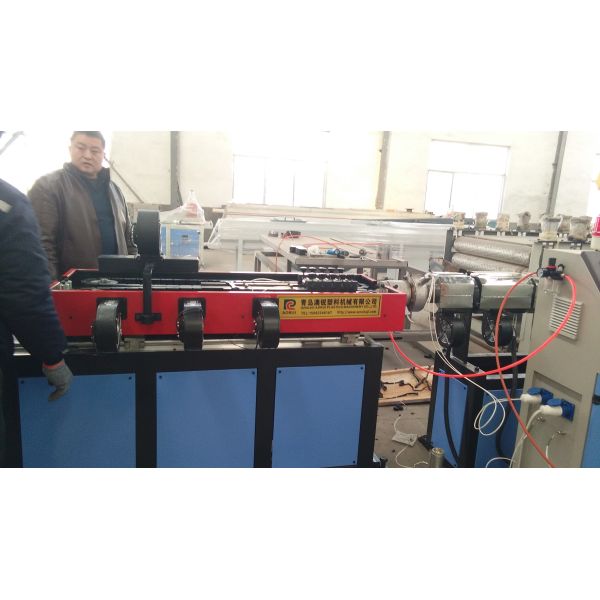

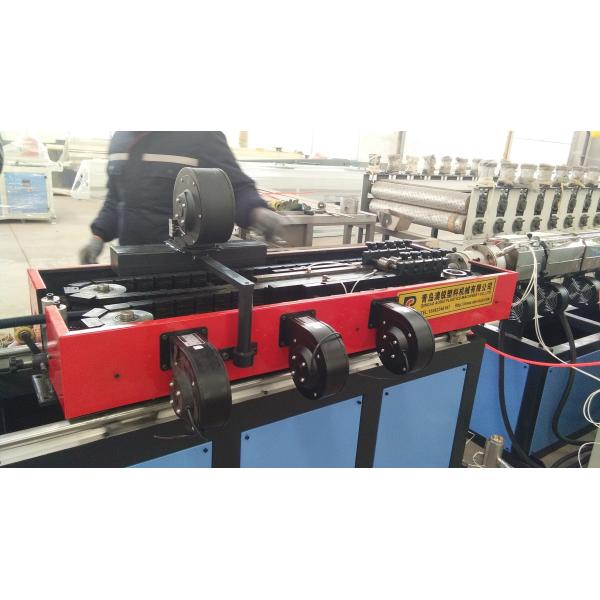

Machine pictures:
